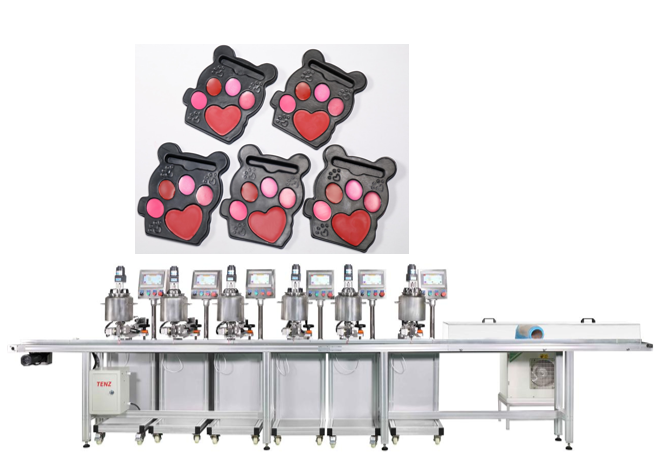

TL-5L-6S-1A Six colors ceramic valve servo single nozzle hot filling machine

Model TL-5L-6S-1A is an automatic hot filling machine, suitable for hot filling jars or aluminum pans, such as lipstick, lip balm, eyeliner, liquid foundation and other filling products

Features :

1、Small size, easy operation

2、Accurate filling controlled with servo ceramic pump

3、Heating tank with mixer,lid is a sealed design to prevent volatiles lost.

4、HMI interface operating system

5、Servo control lifting function as option

6、Filling mode; A Filling under sensor detection B Filling controlled with foot switch

7、6 sets can be connected to produce multi-color products, or each set produce single color products

8、Heating conveyor belt as option for better filling quality

9、Cooler as option for fast cooling


Voltage:AC220V/50Hz Compressed air:0.6-0.8Mpa Power:2.5kw Demension:600*400*1600mm Weight:100kg Output:10-60pcs/min
