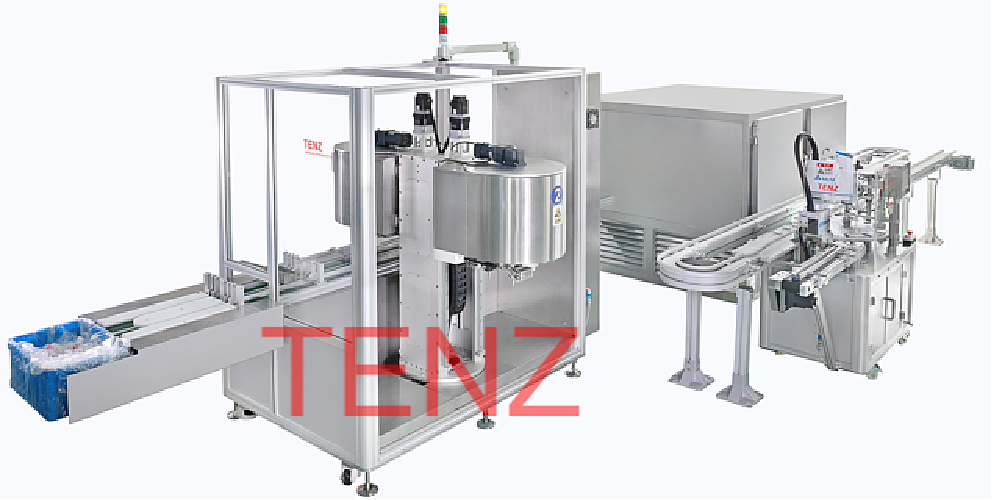

TL-50L2-2A Double nozzle filling production line

Target Products :

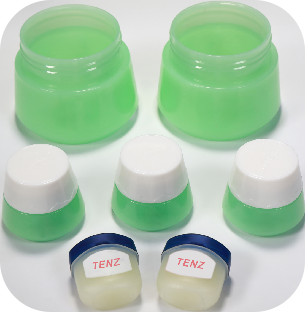

Quantitative filling, freezing, capping for ointment products such as medicines, make-up remover cream, eyeliner,cream, and repair cream,suitable for the production of various containers or molds


1、Double nozzles filling at same time

2、 Filling controlled with servo ceramic pump

3、Auto capping machine to increase production capacity

4、With double tank switch station, easy bulk change

5、Servo lifting tank for different product; Optimize tube line for easy cleaning

6、HMI interface operating system to ensure adjust quickly, memory function for easy changing/saving system configuration

Specifications :

Output:40-70/min   Nozzle No.:2   Tank:50L*2pcs   Operator:1    Power:1Φ 220V 8kw    Weight:3000kg    Power supply: 1 PhaseAC220V 3phase380V    Compressed air:6-8kg/cm2
